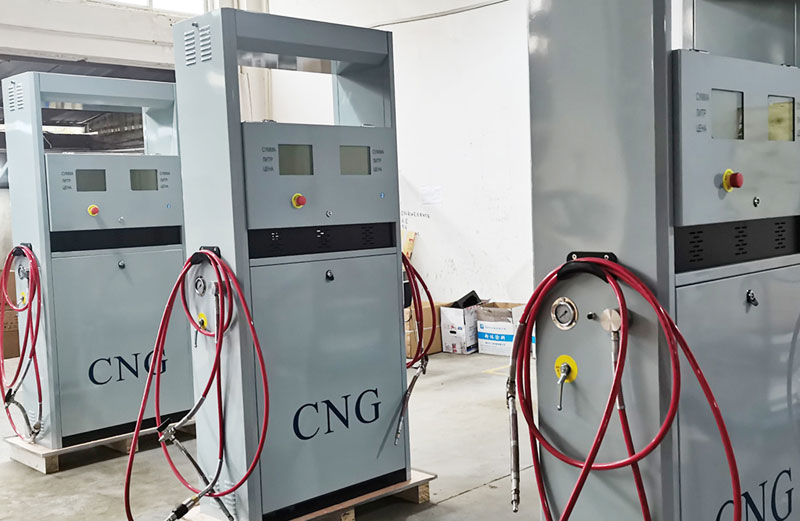

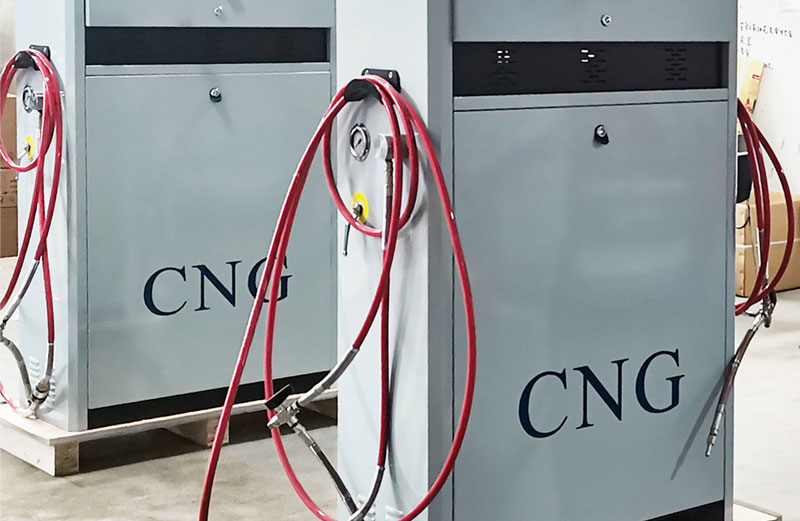

Technical Specification Summary: 📚
Ambient Temperature: ❄️🌞 The CNG dispenser controller is designed to operate within a wide temperature range of -40°C to +55°C, ensuring reliable performance in various climatic conditions.
Power Supply: 🔌 The dispenser accepts both AC 220V and 110V power inputs, providing flexibility for installation in different regions with varying electrical standards.
Flow Rate: 💨 Capable of handling a flow rate of 2 to 30 m³/min (under standard conditions), ensuring efficient and rapid fueling of vehicles.
Working Pressure: 💪 Designed to withstand a maximum working pressure of 38 MPa, ensuring safe and secure operation under high-pressure conditions.
Density Preset Range: 🔬 Allows for a precise preset range of 0.5000 to 0.9999 kg/m³, critical for accurate measurement and billing of CNG.
Unit Price & Range: 💰
Unit Price Range: Configurable between 0 to 9999 or 0 to 999999, catering to different pricing structures and currencies.
Single Range: Adjustable from 1 to 9900.00 or 1 to 999900.00, providing flexibility in setting individual transaction limits.
Accumulative Range: A vast accumulative range of 0 to 9999999999.99, capable of tracking total sales over extended periods.
Electronic Calibration: 🔧 Features electronic calibration for precise and accurate measurement, eliminating the need for manual adjustments and reducing errors.
Optional Printer: 🖨️ An optional printer can be integrated for on-demand printing of transaction records, receipts, and reports, enhancing transparency and customer satisfaction.
Fueling Times Limit Function: ⏰ Enables setting a limit on fueling times, preventing unauthorized or excessive fueling sessions.
Stop Fueling by Integer Sale: 🛑 Automatically stops fueling once the desired amount (in integer units) is reached, ensuring precise control over sales and preventing overfilling.
Decimal Point Setting: 🔢 The display's decimal point can be set according to the local currency rate, making the dispenser suitable for use in various countries with different monetary systems.
Communication Ports: 💻📡 Equipped with communication ports, allowing seamless integration with gas station management systems for remote monitoring, data transmission, and efficient operation.
