PRODUCTOS

Flowmeter Series

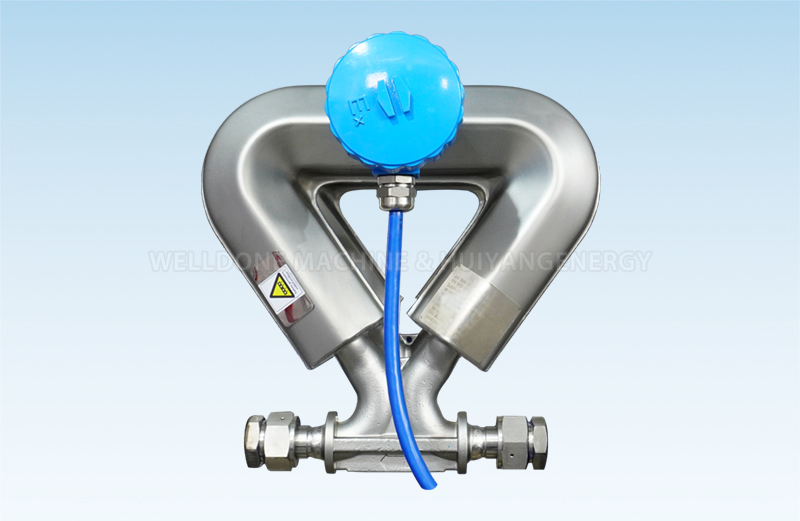

WDCG-03

Modelo：

Categoría：Flowmeter Series

Solicitar nuestro último precio

Productos Recomendados

Especificaciones técnicas

Model	WDCG-03
Mass accuracy grade	0.15,0.2,0.3,0.5
Repeatability	0.075%,0.1%,0.15%,0.25%
Remp.accuracy	±1°C（Repetitiveness±0.5°C）
Temp.accuracy	±0.001g/cm³ (Only liquid)
Density accuracy	360kg/h
Maximum mass flow	4MPa
Standard withstand voltage	3mm
Nominal diameter	DIN2635 PN40 DN15 法兰
Connection specification	01（-70°C~+160°C）；02（-200°C~+60°C）；03（-40°C~+300°C）
Medium temperature	AISI316L
Wetted parts	0.01kg/h
Loss of pressure	≤0.08MPa
Level of protection	IP65/IP67
Ex-mark	II 2G Ex db [ib] IIC T6... T1 Gb(Transmitter) Ex ib IIC T6...T1 Gb(Sensor)
Operating voltage	（85~265）VAC/（12~24）VDC
The Output Signal	RS485；Modbus RTU；0~10KHz Sight flow pulse signal
Communication Signal‍	Modbus RTU RS-485；HART
