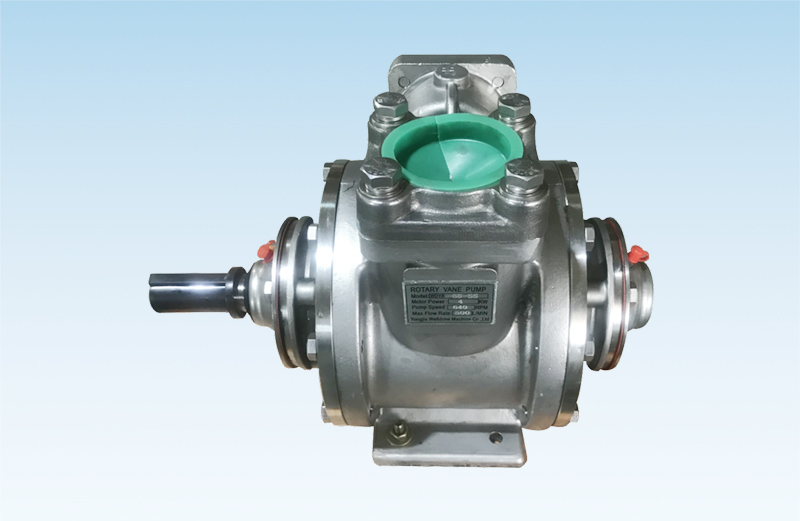

WDYB Series Rotary Vane Pump
Advantage
Durable pumps for fast and quiet operation.
Sliding vane design provides sustained performance and trouble free operation,high reliability.
Adjustable relief valve protects pump from excessive pressure.
Application
Oil tank truck
Fleet refueling
Lube oil
Aviation refuelers
Transport of petro chemicals,gasoline,biofuels, solvents and many more.
Construction：
Technical Specification：
Model
| WDYB-50 | WDYB-65 | WDYB-80 | WDYB-100 |
Without motor | With motor V-Belt driven
| Without motor | With motor V-Belt driven | Without motor | With motor V-Belt driven | Without motor |
Size | 50mm/2” | 65mm/2.5” | 80mm/3” | 100mm/4” |
Pump speed | 400-640RPM | 400-640RPM | 400-640RPM | 500RPM |
Max Flow rate | 150-300L/min | 300-500L/min | 600-1000L/min | 1500-1900L/min |
Vacuum | 0.5Bar |
Working pressure | 5Bar |
Motor power | 2.2KW | 4KW | 7.5KW | 18.5KW |
Dimension | 44X35X35 cm | 76X51X55 cm | 46X34X37 cm | 76X54X56 cm | 49X42X42 cm | 125X46X79 cm | 58X55X61cm |
Gross weight | 34KG | 118KG | 47G | 146KG | 74KG | 266KG | 178KG |
Package | 1pc/wooden case |
