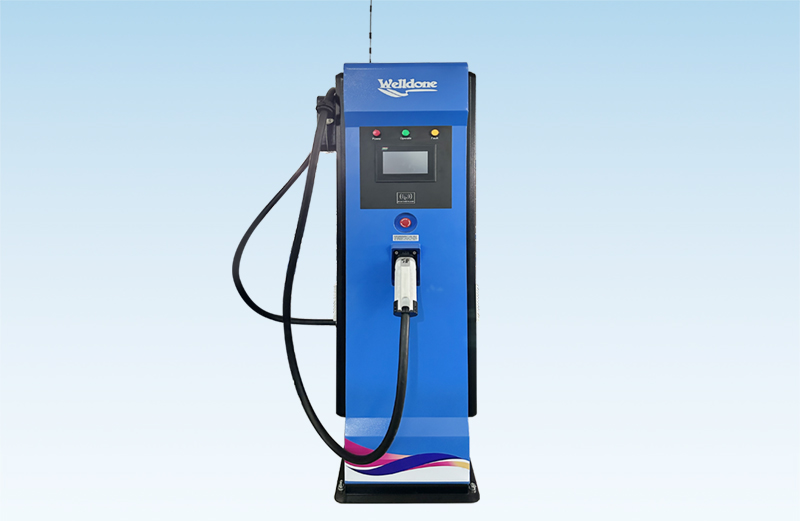

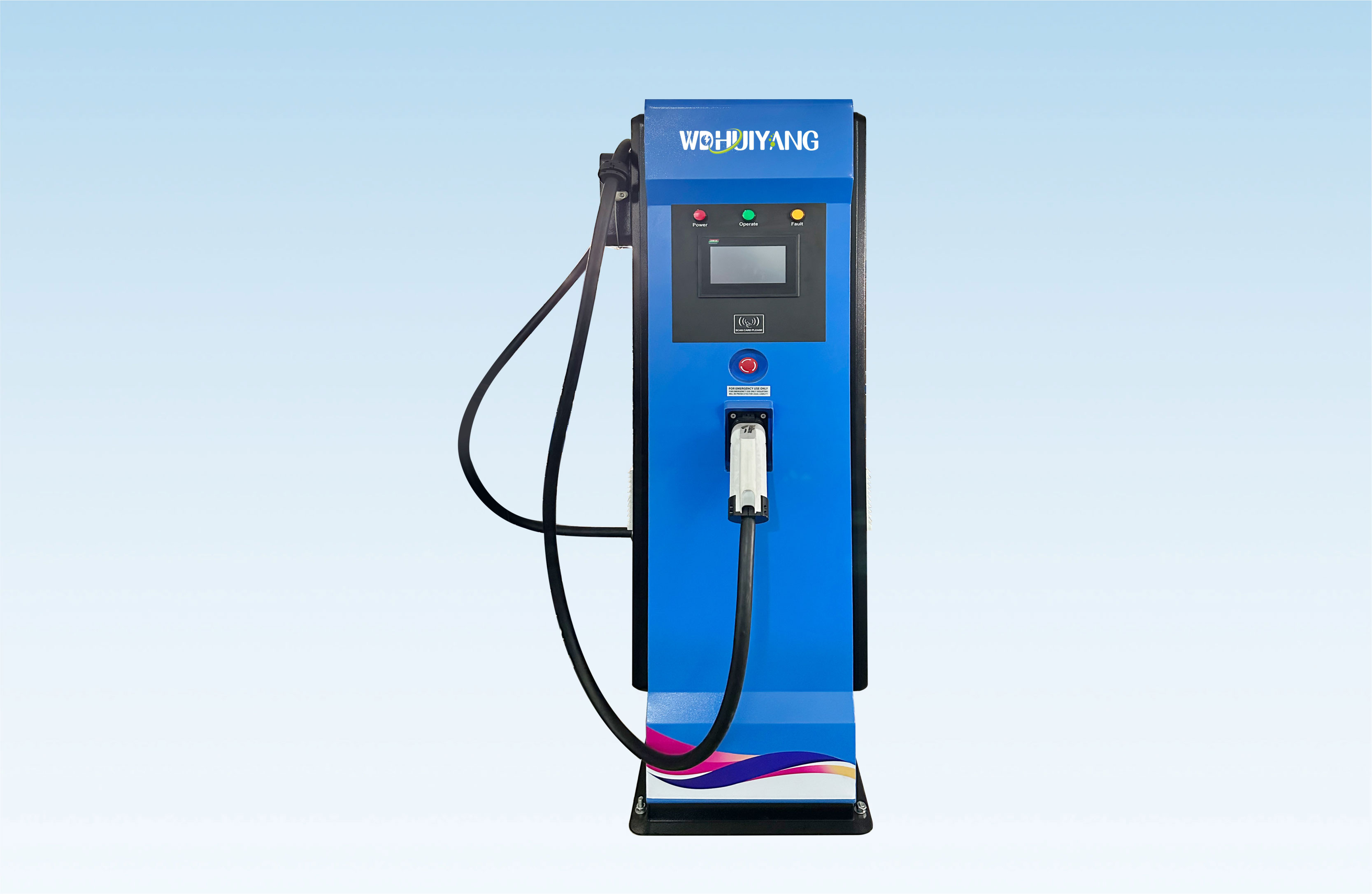

20KW~60KW Single Gun Charging Pile

Model：

Request Our Latest Price

Parameter

Power	20kw/30kW/40kW/60kW
Model	WDHY-1000V-20kW~60kW
Connector	GBT/CCS1/CHAdeMO/CCS2
Max Power	60kw
Emergency Stop Button	Yes
Communication Protocol	OCPP1.6J or others
Input Voltage	380V(-25%,+25%)AC
Frequency	50Hz士10%
Output Voltage	50V~1000VDC
Protection Grade	IP54
Power distribution	Single gun
Power factor	≥0.99
Peak efficiency	95.5%
Overall efficiency	94%
auxiliary power supply	12V
humidness	≤95%
Soft startup time	3-8S
Output voltage error	≤士0.5%
Output currenterror	≥30A，≤+1%;<30A，≤±0.3A.
Voltage accuracy	≤0.5%
Steady flow accuracy	≤1%
Voltage ripple	≤1%
Currentsharing	≤5%
Load adjustment rate	≤1%
Emc	GB/T 19826-2014:5.4
Starting mode	Swipe card/small program scan code
Insulation resistance	>10MΩ
Withstand voltage	AC2500V
Display screen	7"touch screen
Installation mode	Floor
Operating temperature	-35℃~+55℃
Charging gun length	5m/7m/8m
Harmonic distortion	≤5%
