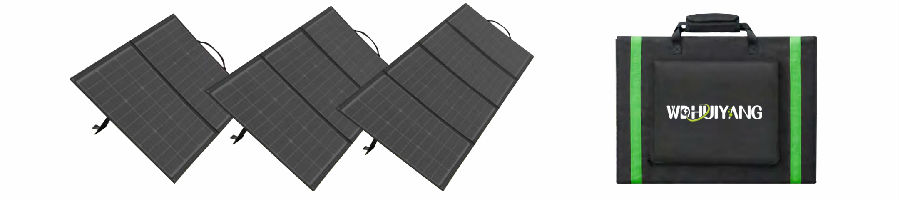

ULTRA LIGHT SOLAR PANEL(CSUL)
| ULTRA LIGHT SOLAR PANEL(CSUL) |
| Folding Module | CSUL-50W | CSUL-80W | CSUL-100W | CSUL-120W | CSUL-150W | CSUL-160W | CSUL-200W | CSUL-250W | CSUL-300W |
| Encapsulation | ETFE/EVA/Cell/EVA/Fiberglass |
| Maximum Power PmaX | 50W | 80W | 100W | 120W | 150W | 160W | 200W | 250W | 300W |
| Maximum Power Voltage (vmp) | 20V | 20V | 20V | 20V | 20V | 20V | 20V | 20V | 20V |
| Maximum Power Current (lmp) | 2.5A | 4A | 5A | 6A | 7.5A | 8A | 10A | 12.5A | 15A |
| Open Circuit Voltage (Voc) | 23.6V | 23.6V | 23.6V | 23.6V | 23.6V | 23.6V | 23.6V | 23.6V | 23.6V |
| Short Circuit Current (lsc) | 2.75A | 4.4A | 5.5A | 6.6A | 8.25A | 8.8A | 11A | 13.75A | 16.5A |
| Cell Effciency | 22.500 | 22.590 | 22.500 | 22.500 | 22.500 | 22.500 | 22.500 | 22.590 | 22.500 |
| Dimension (mm) | 740x442x15 | 1040x550x15 | 1680x425x15 | 1556x550x15 | 1645x570x15 | 1633x570x15 | 2205x570x15 | 2805x555x15 | 3300x60x15 |
| Dimension when Folded (mm) | 442x370x25 | 520x550x40 | 425x375x40 | 525x550x40 | 570x546x40 | 570x550x40 | 570x550x40 | 555x555x50 | 600x600x70 |
| Weight | 1.6KG | 3.1KG | 3.3KG | 4.1KG | 4.5KG | 4.85KG | 6KG | 8.45KG | 9.5KG |
| Tolerance | ±3% |
| Max System Open Circuit Voltage | 1000V |
| Operate Temperature Range | -40℃~+85°C |
| Relative Humidity | 0~100% |

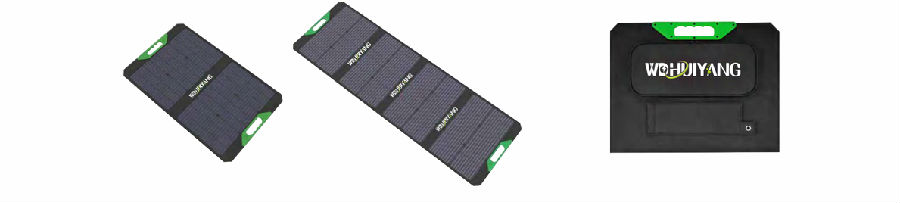

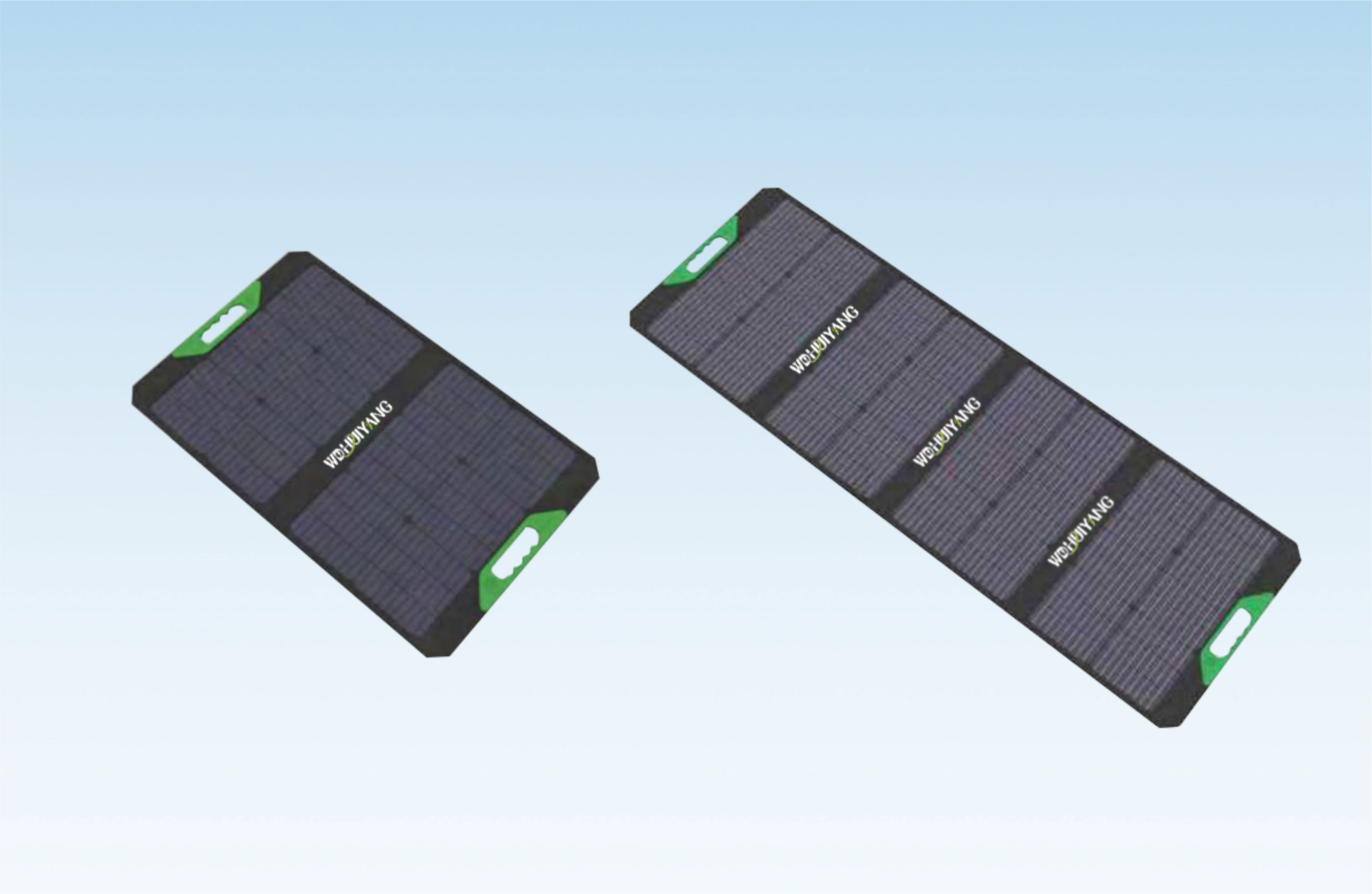

| PORTABLE SOLAR PANEL(CSSP) |
Folding Module | CSSP-70W | CSSP-100W | CSSP-140W | CSSP-160W | CSSP-200W | CSSP-220W |
| Encapsulation | ETFE/EVA/Cell/EVA/Fiberglass |
| Maximum Power PmaXP | 70W | 100W | 140W | 160VV | 200W | 220W |
| Maximum Power Voltage (vmp) | 20V | 20V | 20V | 20V | 20V | 20V |
| Maximum Power Current (lmp) | 3.5A | 5A | 7A | 8A | 10A | 11A |
| Open Circuit Voltage (Voc) | 23.6V | 23.6V | 23.6V | 23.6V | 23.6V | 23.6V |
| Short Circuit Current (lsc) | 3.85A | 5.5A | 7.7A | 8.8A | 11A | 12.1A |
| Cell Effciency | 22.590 | 22.590 | 22.590 | 22.590 | 22.590 | 22.5970 |
| Dimension (mm) | 862x540x15mm | 1241x550x15mm | 1678x548x15mm | 1805x595x15mm | 2370x550x15mm | 1760x783x30mm |
| Dimension when Folded (mm) | 540x455x30mm | 550x620x30mm | 550x455x40mm | 595x475x40mm | 550x620x40mm | 783x475x50mm |
| Weight | 2.5KG | 3.1KG | 4.4KG | 5.6KG | 6.1KG | 7.3KG |
