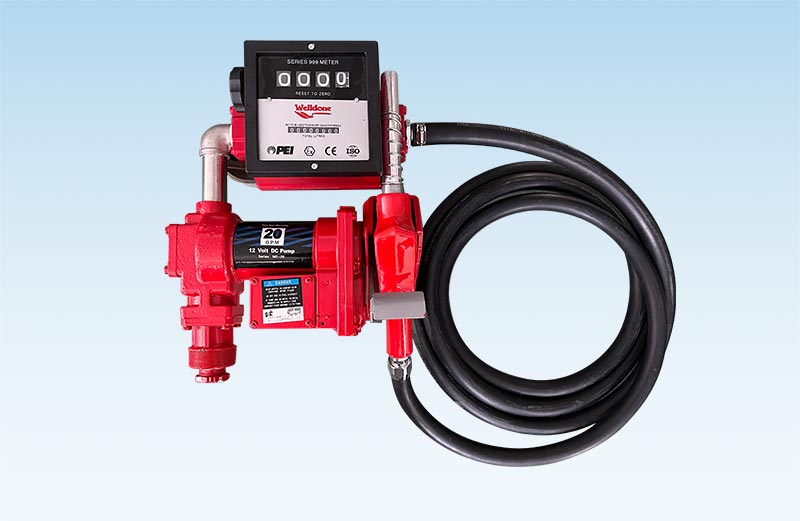

WDDYB-R Electric Transfer Pump

1. Motor and Safety Features

• Explosion-proof Motor: The system incorporates a permanent magnet motor that is explosion-proof, ensuring safe operation when handling hazardous materials like diesel, gasoline, kerosene, mineral spirits, solvents, and heptane.

• Thermal Overload Protection: The motor is equipped with thermal overload protection to prevent overheating and ensure reliability.

2. Filtration and Bypass Valve

• Built-in Strainer: A strainer is built into the system to filter out particles and contaminants, maintaining the purity of the dispensed fuel or solvent.

• Bypass Valve: A bypass valve is included to regulate system pressure and flow rate, ensuring optimal performance and safety.

3. Ball Bearing Construction

• Lubrication-free Design: The pump system features ball bearing construction that requires no lubrication, reducing maintenance requirements and extending the pump's lifespan.

4. Hose and Nozzle Assembly

• 1” Diameter Hose: The system includes a 1” diameter, 12” long hose for efficient fuel or solvent dispensing.

• Static Ground Wire: The hose is equipped with a static ground wire to dissipate static electricity and prevent sparks.

• 1” Manual Nozzle: The hose terminates in a 1” manual nozzle for precise control over the dispensing process.

• Protective Nozzle Boot: The nozzle is protected by a boot that guards against dirt and contamination, ensuring clean and safe operation.

5. Mounting and Durability

• 2” Threaded Base: The pump system includes a 2” threaded base for secure mounting to tank openings.

• Corrosion-proof Section Pipe: The section pipe is corrosion-proof, enhancing durability and protecting against the corrosive effects of fuels and chemicals.

6. Weather Resistance

• Rain-proof and Water-proof Design: The pump system is designed to be rain-proof and water-proof, ensuring it can be used outdoors or in damp environments without risk of damage.

7. Duty Cycle

• 30-minute Duty Cycle: The pump system is designed for a 30-minute duty cycle, ideal for intermittent use. It is not suitable for continuous operation to prevent overheating and wear.
